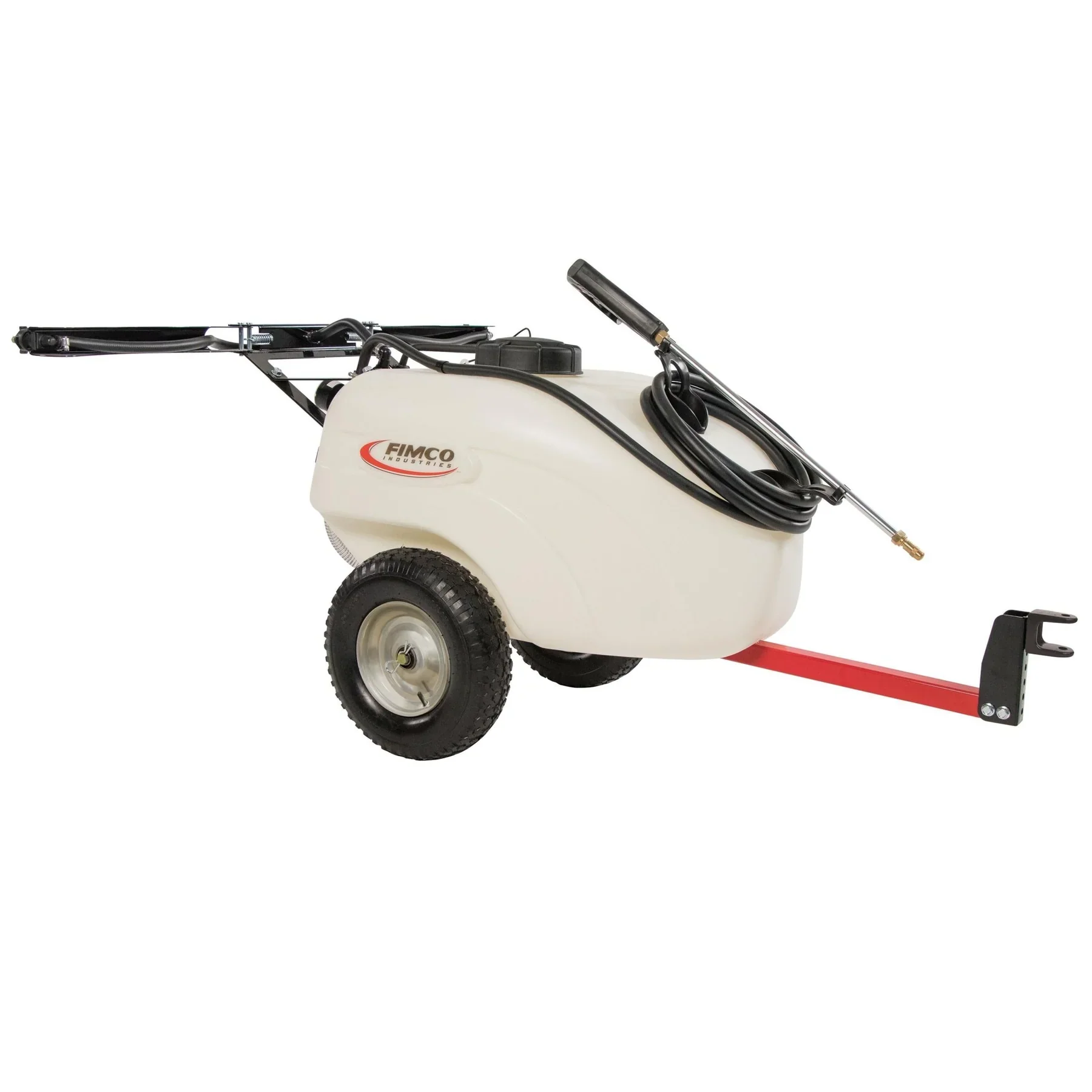

Fimco Tow Behind Sprayer 76L

FIMCO 76L Trailer Sprayer

The FIMCO 76L Trailer Sprayer delivers high-performance spraying, ideal for large lawns, small pastures, and expansive turf areas. Its UV-resistant, molded polymer tank features a 127mm tethered lid for easy filling and is fully drainable for convenience and maintenance.

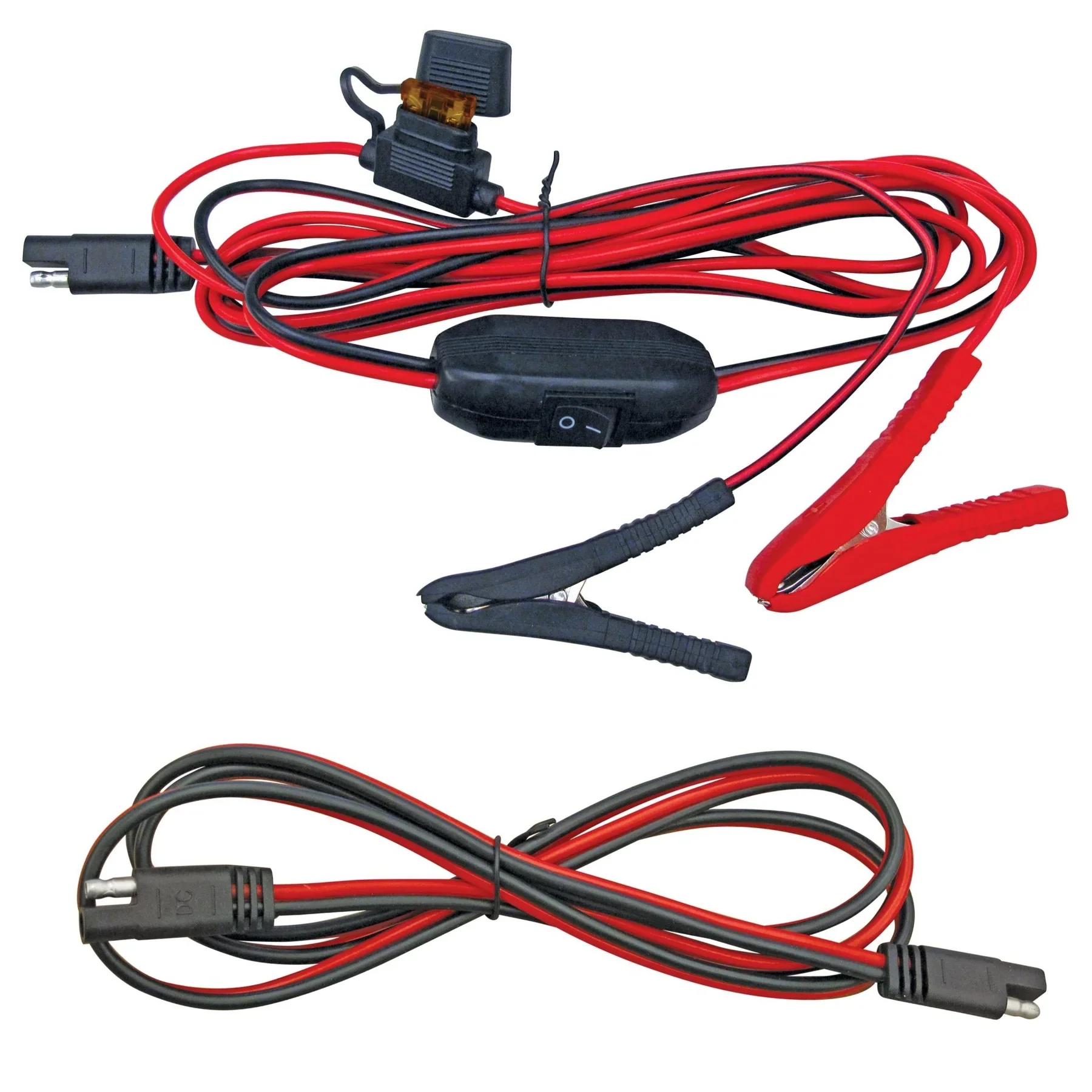

Equipped with a best-in-class High Flo 12V pump delivering 9L/min, this sprayer includes inline fuse protection and a chemically resistant design for long-lasting performance.

The Deluxe Pistol Grip Spray Wand features an adjustable nozzle, providing up to 12m of horizontal spray and 8.5m vertically, with a 4.5m x 10mm hose for reaching tight spaces around buildings or obstacles.

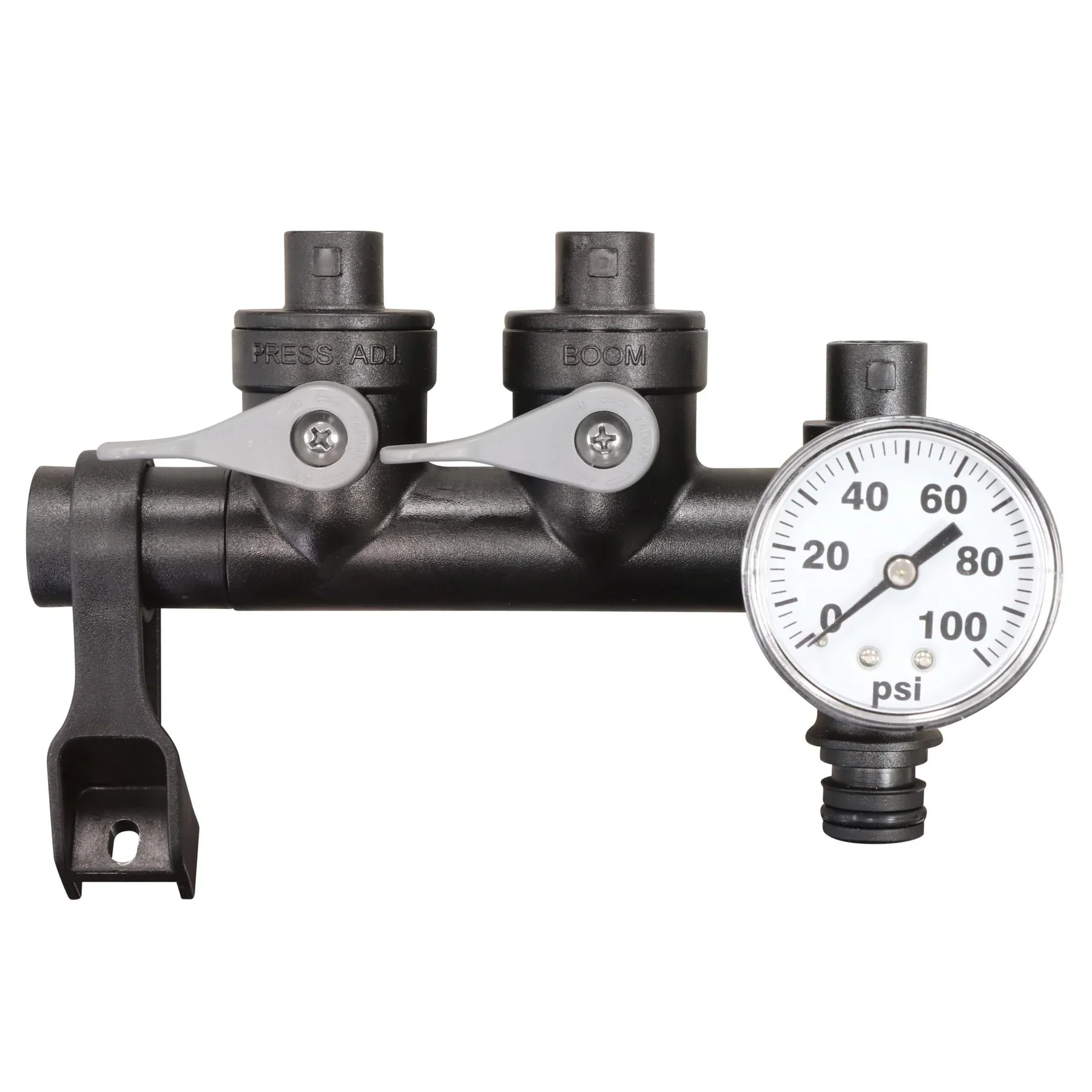

The sprayer’s 2-nozzle breakaway boom delivers 2m of total coverage using FloodJet tips for reduced wind drift and non-drip check valves. The exclusive FIMCO manifold allows pressure control and boom operation at your fingertips, making it easy to fine-tune your spray pattern.

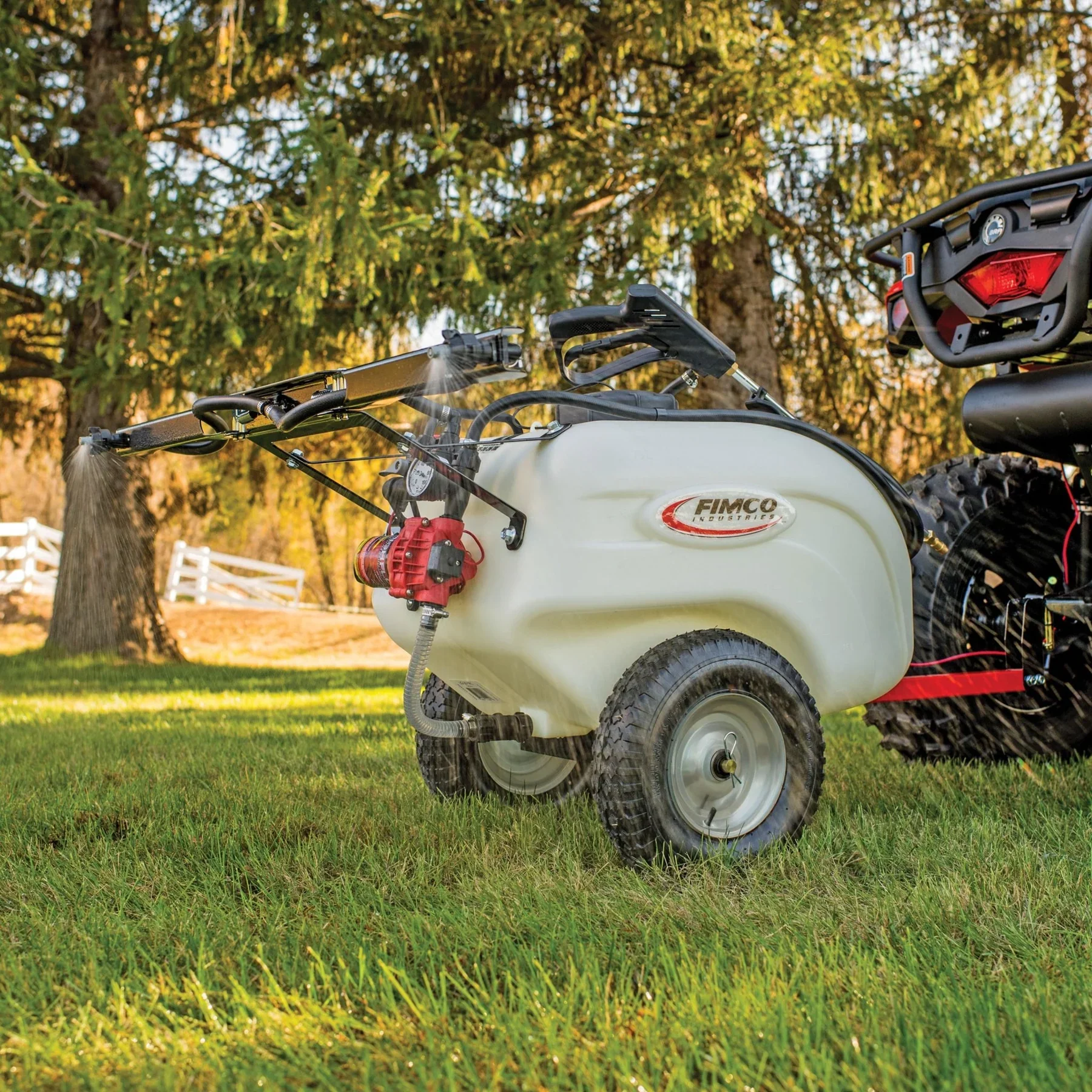

This tow-behind sprayer ensures precise, consistent, and efficient application of lawn care products, making it perfect for maintaining healthy lawns, sports fields, parks, and golf courses. It is ideal for weed, pest, and fungus control, as well as watering.

Key Features:

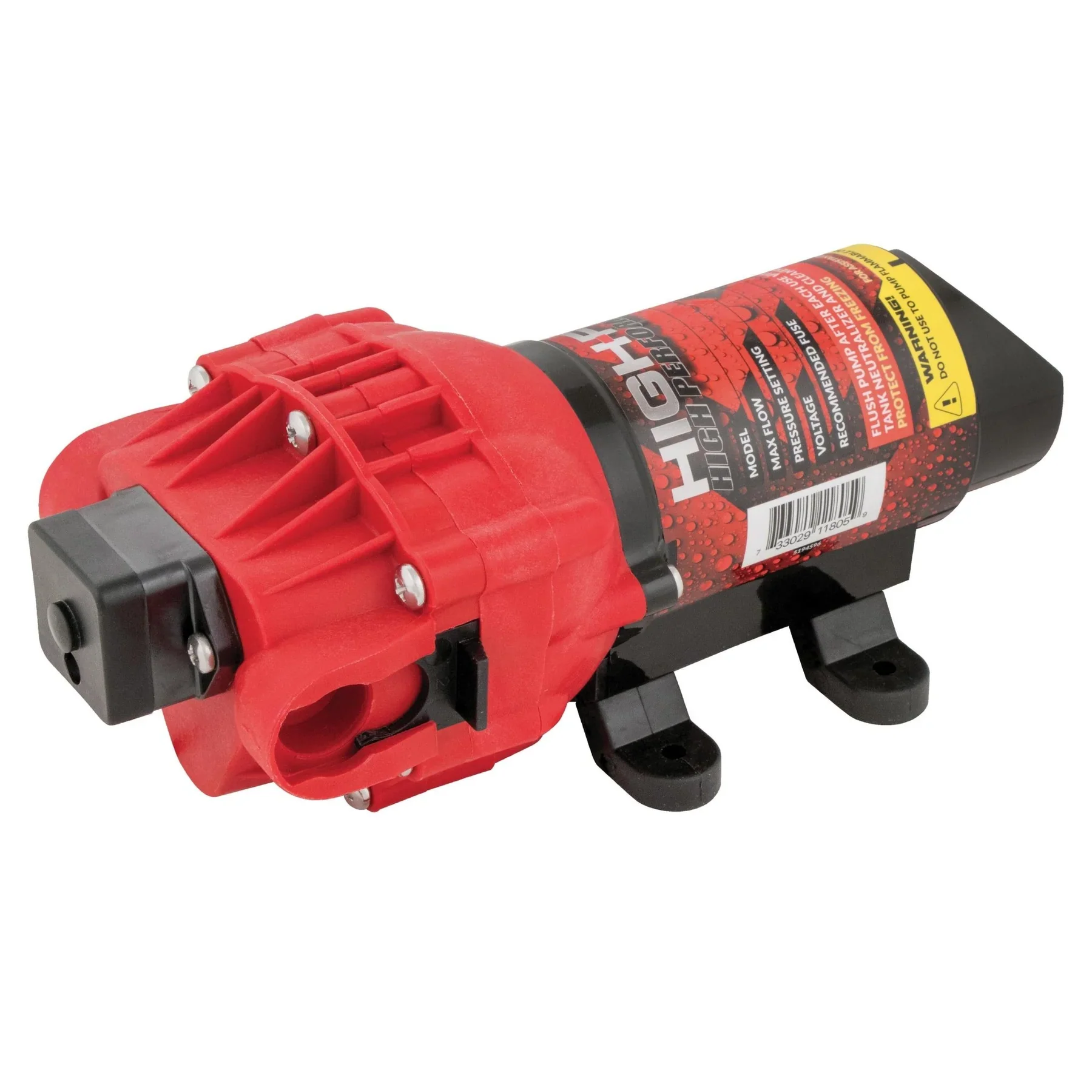

• High Flo 9L/min pump with internal fan-cooled motor, chemical-resistant valves and diaphragms for durability and long pump life

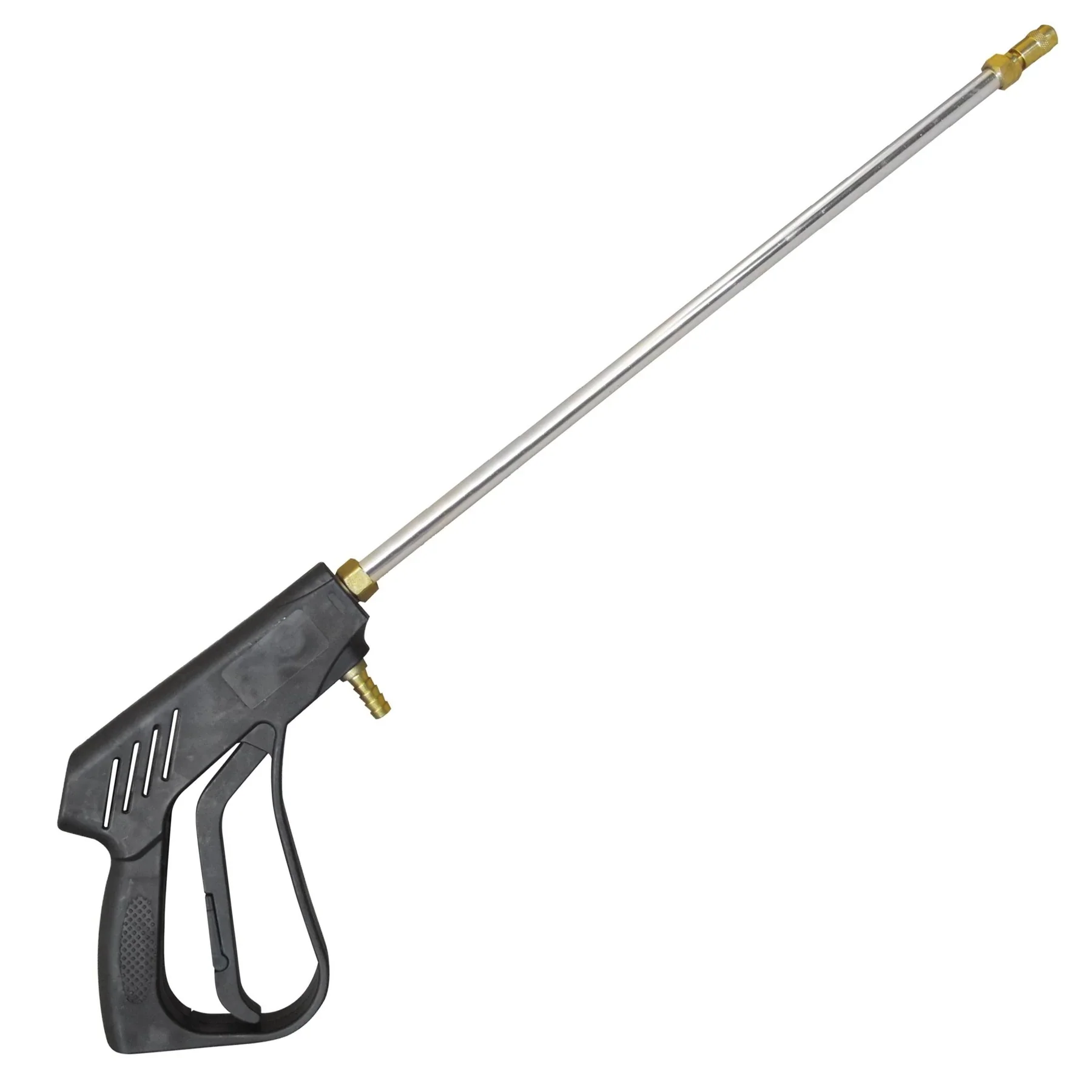

• Deluxe pistol grip spray wand with ergonomic handle and precision brass nozzle

• Spray coverage: up to 12m horizontal, 8.5m vertical

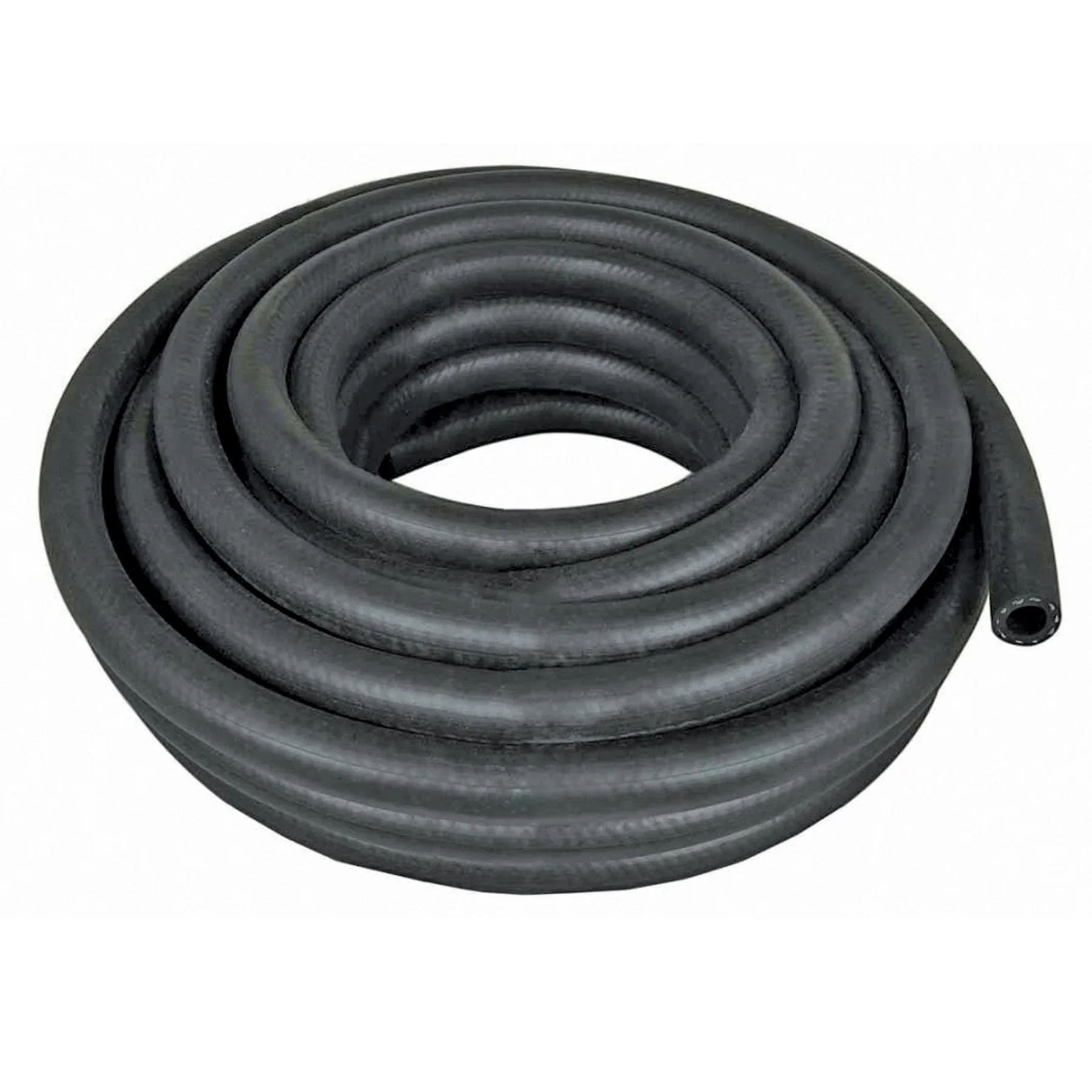

• 4.5m hose for extended reach

• Durable 76L UV-stabilized blow-molded tank with molded drain port and 127mm tethered lid

• 2-nozzle breakaway boom, spring-loaded to avoid damage from obstacles, delivering 2m coverage

• Powder-coated, laser-cut steel frame resists corrosion

• 300mm pneumatic turf tyres for smooth towing over lawn surfaces

Specifications:

• Tank capacity: 76L

• Pump: 12V High Flo 9L/min at 60 psi

• Spray wand: Deluxe pistol grip with adjustable tip

• Spray height: up to 7.5m

• Horizontal spray distance: up to 12m

• Hose: 4.5m x 10mm

• Boom coverage: 2m

• Frame: Powder-coated steel, 16mm solid axle, sealed bearings

• Tires: 300mm pneumatic turf

• Weight: 23.1kg

• Dimensions (mm): 914 x 508 x 432
